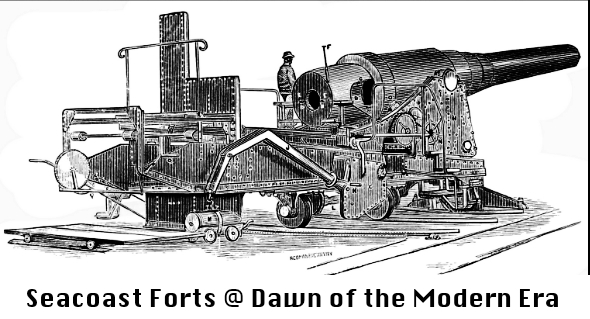

Seacoast Forts at Dawn of the Modern Era
The Modern Era:
It is perhaps surprising that the "Modern Era" arguably began in 1890. This is true both militarily and in civilian life. Considering the military first, the French invented smokeless (gun cotton based) gun-powder in 1884 and it was fully integrated into their navy by 1893. The Swiss invented a similar "flashless" powder in 1888, and Alfred Nobel invented Nitroglycerine based Ballistite gun powder in 1887 (1)(10). The integration of smokeless powder and the breach loading rifled cannon resulted in a fully modern weapon capable of hurling explosive shells ten miles. The machine gun had already been invented, and barb wire was widely used on battlefields. Steam powered steel battleships 400 feet long cruised the seas armed with two, twin 12" gunned turrets, and many smaller guns. While technologically advanced fire control methods had yet to be developed, armament was in all senses modern. U.S. Forts of the 1890s were equipped with telephone communication and electric search lights. In the Far East, the Russian fortress at Port Arthur was protected by five modern 10" cannon installed at "the electric cliffs" -- an apparent reference to the generating station associated with the battery.(6)
Back in the American homeland, Thomas Edison had already invented the light bulb, and the 1908 Presidential Debates were recorded and distributed on primitive record players (11). Cities were being wired for electricity and steel bridges crossed mighty rivers as women fought for the right to vote. The Zipper was patented in 1893 and soon began "holding things together as needed." While technology had not yet revolutionized transportation, the modern era had arrived.
Historical Context of Coastal Fortifications: Some might wonder why we rarely hear of great seacoast forts of the modern era. Some criticize the coastal forts as ineffectual while others wonder whether they even existed. They truly did exist and to a great extent we have heard little of them because they were very effective. Put simply, few battle fleets had the audacity or power to challenge the coastal guns. In modern era, when great fortresses fell, it was was to an invading army rather than to a powerful fleet.
Effectiveness of Shore Batteries vs. Naval Guns: In the period before 1905, one 12 inch coastal gun was thought as effective as 3 ship board guns of the same size. There were four primary reasons for the superiority of shore batteries over ship-board guns.
- Shore based guns were not more powerful than ship based guns. It was only in accuracy they excelled. Stable mounting on land provided far more accurate shooting than did the constant rocking motion of a ship. (see Percy Scott, 50 Years in the Royal Navy for a discussion)
- A ship at sea was a highly visible target, while post 1890 coastal fortifications were practically invisible from battleships at sea. A shore battery could thus hit an enemy ship many times before the ship could even figure out where the shore battery was.(13)
- A hit on a ship always produces damage; but the shore battery was mostly earth and concrete walls. Over 95% of hits on a seacoast fort did no significant damage while hits on ships always resulted in either immediate else operational consequences.(14)
- Coastal forts used surveyor's transits to pinpoint the location of enemy ships, while ships at sea used range finders varying from 3 feet long to 30 feet long. These instruments could not complete with the accuracy of surveyor's transits placed a quarter mile apart.(5)
In conclusion, a coastal fort saw its target, hit more often and was invulnerable to damage. The primary advantage of a fleet was the ability to move down the coast and attack an unfortified position. But when the purpose of the coastal fort was defense of a naval anchorage, even that advantage for the fleet was lost.

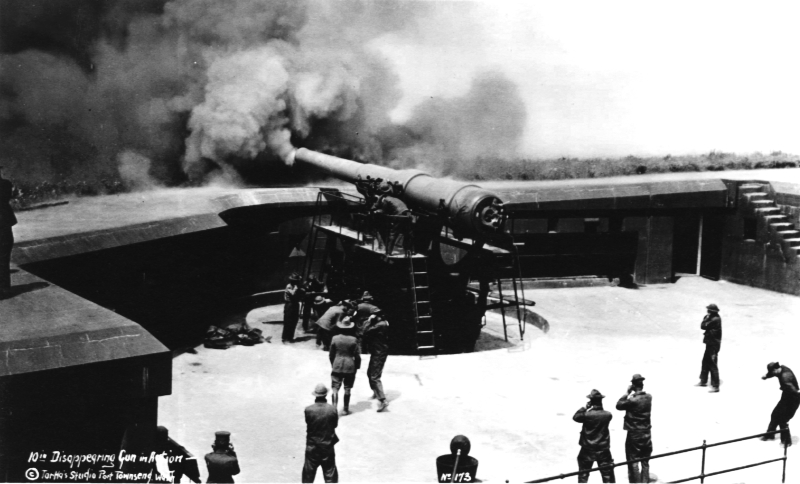

Public Domain: 10" Disappearing Gun fired on Oregon Coast
Did Modern Coastal Forts Really Exist? There were many coastal forts in the U.S., Europe and Asia. A few examples follow.
The above list is not exhaustive, and merely provides a few examples. Other nations also had robust defenses. It may be concluded coastal forts in the modern period (1890 and on) were quite common around the world. In restricted European locations, coastal guns were installed in Iron and steel turrets and casemates. In the U.S. where space was available, coastal guns were installed in earthwork and concrete fortifications. Likewise for the far east Russian seacoast fortresses. Between 1890 and 1920, American coastal forts usually had gun carriages that allowed the gun to swing up from behind a wall for firing, and drop down behind the wall for loading (disappearing mounts). Before the advent of military aircraft, these forts were virtually invulnerable to cannon fire from ships. There were exceptions to American practice. At Corigador Island, the U.S. Army Corps of Engineers turned a small Manilla Bay island into a "concrete battleship" with two twin 14 inch gun turrets.(5)
- Alexandria Egypt 1880s: The British Navy bombarded Egyptian batteries circa 1880. At the time, Alexandria was fortified by many coastal guns of large size. This is one of the rare instances of a fleet challenging coastal forts (see Percy Scott, 50 Years in the Royal Navy)
- Austria-Hungary, Pola 1895: The principal naval port at Pola was protected by coastal forts, defending the marine entrance from both north and south. On the north, Fort Del Christo contained two 11" rifles under armored cupola. South, the entrance was protected by Fort Maria-Louisa with twin 11" and twin 9.5" guns. Additional forts were sited on the crest of mount Capellatta. The forts at Christo and Verudello which defend the principle entrance to the port were protected by steel revetments more than a meter thick. The neighboring bays on Pola were protected against attempted debarkation by four additional forts. Pola was thus well protected by a complex of both coastal guns and land fortifications.(2)
- Russia, Port Arthur 1904: The Russian Pacific Squadron base at Port Arthur was defended by five 10" rifles and 32 9" and 11" coastal mortars. The port area was ringed by land defenses that included modern forts armed with cannon and machine guns. Additional defensive lines were provided at Nanshan, the narrows of the peninsula leading to Port Arthur. Fixed mount guns (primarily coast defense) captured by the Japanese at fall of Port Arthur included: Five 10" rifles at the Electric Cliffs. 13 23cm and 24 cm guns at 20 caliber. 30 six inch rapid fire naval guns. 16 22 cal 6" guns. 5 12 cm quick firing naval guns. 51 75mm (12 pound) quick firing naval guns. 10 28 cm Coastal Mortars. 22 23 cm howitzers.(6)
- Russia, Vladivostok 1904-1919: The Russian port at Vladivostok was also well defended. After the Russo-Japanese war, lessons learned from the defeat of Port Arthur were incorporated into the Vladivostok defenses. By WWI, 50 shore guns of various sizes were installed in 16 coastal forts/batteries. All basic installations were equipped with electricity and underground communications. Defensive structures were improved to withstand the 11 siege mortars that destroyed land facing defensive forts at Port Arthur. A ring of forts defended the fortress from land based attack.(9)
- Russia, St. Petersburg Circa 1900: The naval port near St. Petersburg was well defended by modern coastal guns.
- England Isle of Wight Circa 1890: Photographic evidence of a shore battery indicates a large disappearing mount of a 10" or 12" rifle on the Isle of Wight.
- Singapore: At the onset of WWII, Singapore was defended by large coastal guns. Reported coastal guns included five 15", six 9.2 inch, twentyfour 6" and nine 12# to 18# guns plus several obsolete 10", 9.2" and 8" guns. (3)
- Australia Circa 1880: I visited the guns at Port Fairy Australia in 1983. It was defended by many 6 inch coastal mortars installed in the 1880's. Internet research indicates Sydney Australia was protected by big shore batteries at various times since 1890.
- Japan 1904: Straits between the Japanese Islands and major ports were defended by 11 inch Krupp coastal mortars, that were moved during the Russo-Japanese war to the siege at Port Arthur. They successfully crushed the inland fortifications.
- U.S. Endicott Period, 1890 and on: The US had several generations of coastal forts. In the modern period (after 1890), large coastal rifles (10" and 12") and coastal mortars (12") were installed IAW the Endicott Board (and later Taft Board) recommendations. Corigador Philippines, the Panama Canal and Hawaii were all protected by big guns installed between 1890 and 1925. The continental US was protected by big guns too numerous to list, but including locations at New York, Virginia, Florida, Alabama, Galveston Texas, San Francisco, delta of the Columbia River in Oregon and many other places. These were well engineered batteries employing a mixture big coastal rifles (12 inch and up) and coastal mortars (12 inch and up). These batteries were equipped with then modern fire control instruments and plotting stations.(5)
- Germany 1914: While details are meager, the 1895 Journal of U.S. Artillery indicates robust defenses of the German naval ports by the mid 1890s. The British Navy in WWI considered direct attacks on the German Coast to be suicidal due to extensive coastal defenses including guns and mines.
- Oslo Norway WWII: In WWII a German cruisers and a pocket battleship attacked Oslo up a Fiord that was protected by a pair of 11 inch guns, 6 inch guns and a torpedo battery. While the German invasion was successful, the Norwegian coastal fort sunk a heavy cruiser and forced withdrawal of the pocket battleship, thus buying time for the Norwegian government to escape Oslo. The coastal fort proved capable of stopping the German fleet, but fell under infantry assault.
Conclusions:In the modern period (1890 and on), coastal forts were common throughout the world. We read little of these great guns because they were rarely challenged. There are few discussions of battles between coastal guns and battle fleets because the coastal forts were powerful and admirals were smart. The few recorded duels between coastal guns and fleets (e.g. Japanese fleet bombardment of Port Arthur) end when fleets retired after coastal guns began hitting. News grabbing headlines were thus about armies over-running fortresses rather than battle fleets destroying the big coastal guns.
Credits & Sources
- Extensive information is available between 1890 and 1912 in Journal of the United States Artillery.
- Professional Notes section provides details on the Austro-Hungarian defenses at Pola. See Journal of the United States Artillery, Volumes 3-4, 1895
- Coastal Guns at Singapore WWII: Detailed information provided by Mark L. Bailey, Singapore Coastal Defences tapatalk.com. Detailed listing of Fort/Battery name & location is given with armament. Detailed maps not provided.
- Shell Wind Resistance: Exterior Ballistics 1885 by Meigs & Ingersoll presents equations for computing cannon shell trajectories. These apply equally to naval and land based guns.
- Seacoast Fortifications of the United States by Emanuel Raymond Lewis presents a good history of American Coastal Fortifications.
- U.S. Military Observer Reports for the Russo-Japanese War Part III by Major Joseph Kuhn presents detailed information on the fortress at Port Arthur. Information is provided on both shore batteries and ammunition remaining when the fortress surrendered to the Japanese.
- Images: Images used in this presentation are Public Domain unless credited to specific sources.
- Fifty Years in the Royal Navy, by Admiral Percy Scott, RN. Provides wide ranging commentary on the development of gunnery technique from 1865 to 1918. Information includes a discussion of the difficulties of land based vs. ship based artillery accuracy.
- Vladivostok Fortress: Wikipedia et. al. provides information regarding the fortress at Vladivostok.
- Development of Smokeless Gunpowder: see Encyclopedia Britannica on line. Several other sources such as Development of a Modern Navy, by Theodore Ropp and the Journal of the United States Artillery prior to 1900 are also relevant.
- You can purchase a copy of the Edison recordings of the 1908 debates on line. Search "Debate 08" using a Web Search Engine.
- The History of the Zipper, www.thoughtco.com
- Notes on Seacoast Coast Fortification Construction by Col. Eben Eveleth Winslow, U.S. Army 1920 p183: Experimental tests of Battleships vs. Shore batteries were conducted at Fort Morgan in 1915. "Attempts to conceal this battery were so successful that the naval officers stated that at ranges of 5,000 yards they were unable to distinguish the parapet from the neighboring sand dunes, and this even after they had visited the battery and noticed its location with relation to the surroundings."
- See Government Report on 1915 Experiments at Fort Morgan Alabama.
